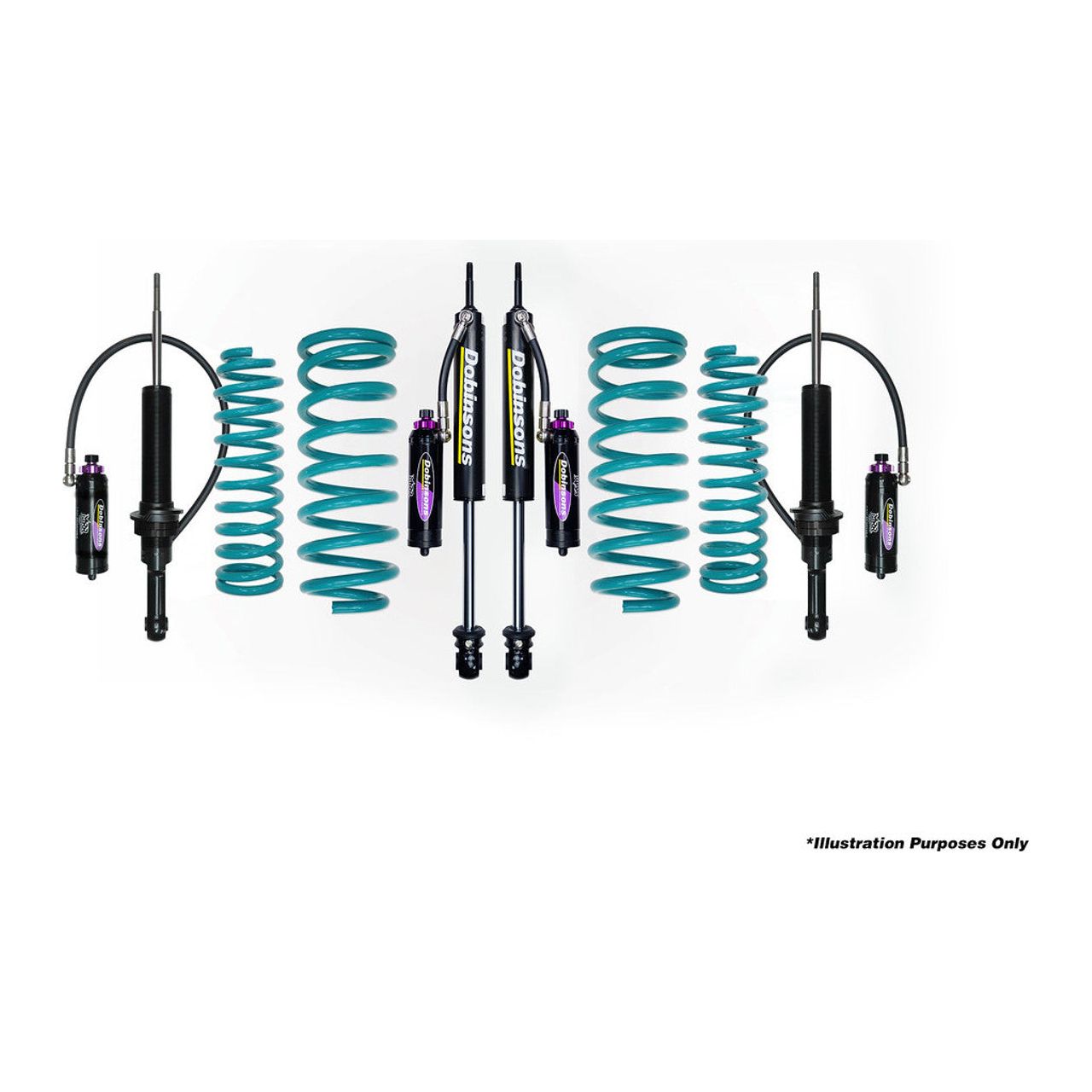

First Gen Sequoia Dobinsons MRR Suspension

Front Coil Spring Options

• C59-342 Stock Height, Stock Load
• C59-344 (45mm - 1.75") Stock Load
• C59-300 (50mm - 2") Stock Load
• C59-302 (60mm - 2.5") Stock Load / (50mm-2") 110-175lb Load

Rear Coil Spring Options

C59-323 - Stock height up to 1/2" lift
C59-599 - 1.25-1.5" with stock weight
C59-505 - 1.75-2.0" with stock weight
C59-325 - 2.25-2.5" with stock weight
C59-327 - 2-2.25" with 200-400lbs constant load
C59-329 - 2" with 500-800lbs constant load
C59-331 - 2" with 800-1200lbs constant load

Free Shipping to the lower 48 USA

Assembly approx 1-2weeks but can vary due to product availability.

Specs:

• 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
• 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
• 20 Stage Low Speed Compression - For creepy crawling and cornering
• 15 Stage Rebound - Control your coils, prevent bucking
• 50mm/60mm CNC Machined High Flow Billet Aluminium Race Piston
• 2.2"/2.6" Diameter precision honed shock bodies with HD 3mm thick walls
• Upgraded 3 Stage FKM/HNBR Sealing System
• TSUGAMITM CNC machined components for precise tolerances
• ParkerTM Braided High Pressure Hoses
• 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
• T6 6061 Height Adjustable Spring Seat
• Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction wear performance
• 60mm Full 6063 aluminum remote reservoir
• Lightweight CNC Machined Low Friction floating piston
• High Quality O.E.M. Grade Natural Rubber Bushings
• Single Piece Lower Leg
• EDP Surface Protection
• Direct Bolt-On Design
• CNC TIG Precision Welded Body End Mounts
• Fully Rebuildable Design
