Wilwood Manual Proportioning Valve Kit (LSPV Delete)
Wilwood Manual Proportioning Valve Kit (LSPV Delete)
Couldn't load pickup availability
Share
Restocking ETA to ship end of May!
Do you have a first gen Tundra with un even brake power? Maybe you have heavy loads in your bed? Failing LSPV valve? Desire to have total control? There are many reasons why one might consider switching to a manual valve. This kit will allow you to easily remove the factory LSPV that can often not be doing its job well and give you total control to send your preferred power ratio to the front and back brakes. Every rig is different and this allows you to dial it in perfectly.
This kit does work for first gen Tacoma (with minor adjustments) and other Toyota's with LSPV but there is no provided instructions you will have to confirm the brake line to disconnect and connect.
NEW UPDATED Design: the bracket is now thicker gauge for firmer mounting and powdercoated for maximum longevity and corrosion resistance. New premium hardware for sleek and easy valve mounting. Valve adapter is included to properly fit factory Toyota brake lines and the Wilwood Valve inlet port.

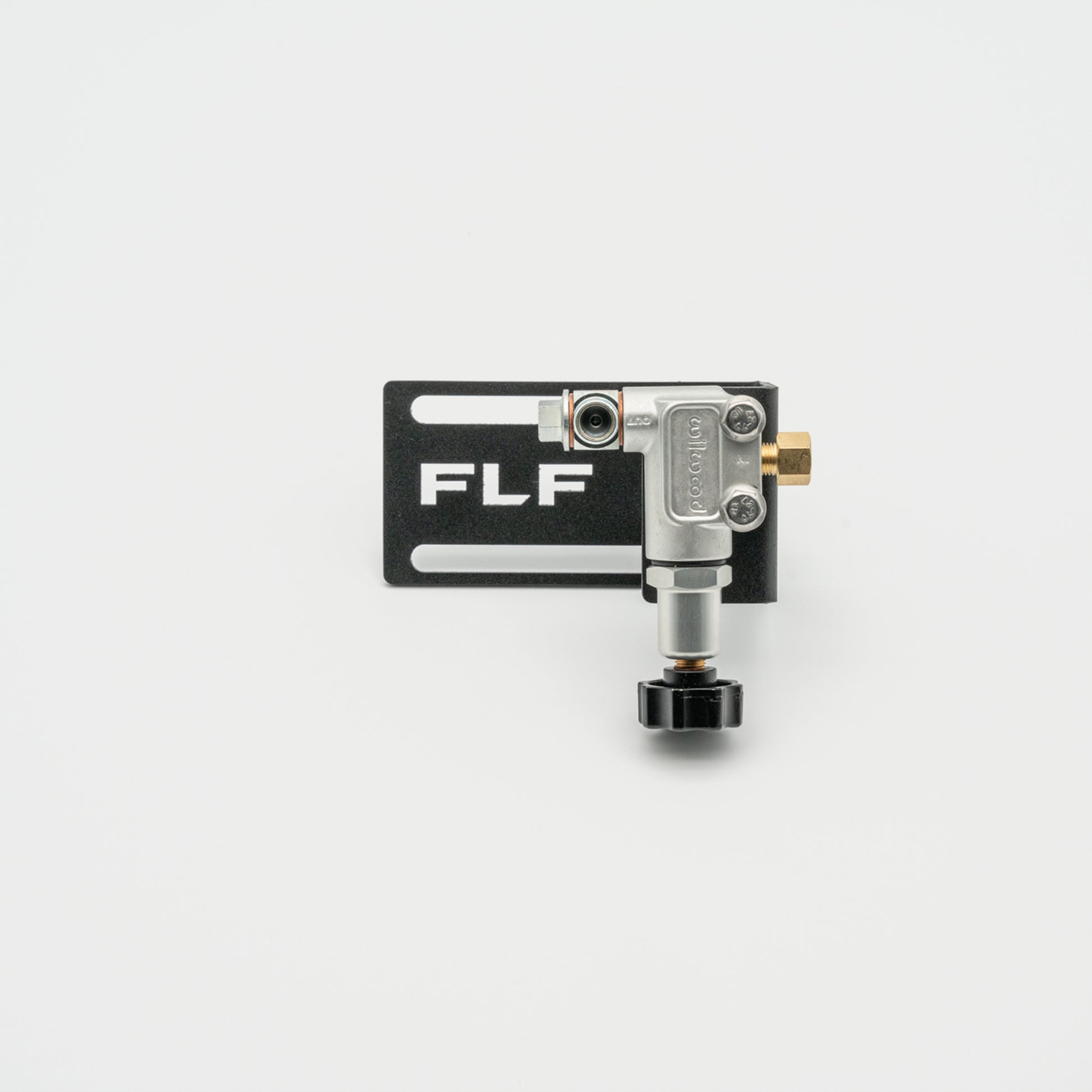

If you are looking to remove your factory LSPV and replace it with a Wilwood manual proportioning valve this kit includes the fittings, bolts, and bracket to mount it in the factory location with option to purchase with valve or without (valve is needed for kit to be complete).
Bracket only includes:
1x Relocation Bracket
1x Female Banjo Fitting
1x Banjo Bolt
1x Plug
1x Brake Line Adapter
2x Copper Crush Washers
2x Mounting Bolts
2x Nylock Nuts
Select Complete Kit With Wilwood Valve to get everything you need.
NOTICE and DISCLAIMER!
If you are expecting the kit to be a miracle cure for bad brake performance,
there are other things to investigate first. Old brake fluid, worn out rubber lines,
leaks, air in the lines, air in the ABS system, old brake pads / shoes / rotors / drums, incorrectly adjusted rear brakes, bad master cylinder / brake booster
could be potential causes for braking system problems. This kit eliminates the
LSPV valve, which can wear out and cause inconsistent braking performance as
well as give you some adjustability.
By following these instructions, you are modifying your vehicle's braking system
and are solely responsible for the results. We are not liable for nothing beyond the cost of the kit itself. Any changes made to your road going vehicle are entirely your responsibility and liability in regards to local laws, legislation, liability, and performance.
As seen on FirstGenTundra.com Design Lic From Amish Hacker to Fr33 Lance Fab as exclusive dealer.
Collapsible content
Fitment Notes
2000-2006 Tundra
1995-2004 Tacoma (With Modification)
Shipping & Returns
Shipping & Delivery
Fr33 Lance Fab ships their products within the United States and Canada. Most products ship via UPS or USPS. Orders that exceed $600 may require a signature confirmation. The customer is responsible for import taxes and fees on international shipments.
Damaged or Missing Parts
In an instance where you receive a damaged package a claim must be made with Fr33 Lance Fab immediately. The claim can be submitted by sending an email to Orders@Fr33LanceFab.com containing photos of the damaged packages and damaged products. The email must also include your order number as well. Do not discard any of the original packaging or try installing the products. Failure to do the above may result in us not being able to assist. Alternatively you can open claim with UPS/USPS etc this would be same procedure we would be facilitating.
While every precaution is taken there could be a case where you are missing parts. If this happens please send an email to Orders@Fr33LanceFab.com with your order number, list of missing parts, and photo of the package or packages.
If the shipping carrier losses your package please contact Fr33 Lance Fab immediately. A claim will be filled with the shipping carrier. Unfortunately, we do not have control over UPS/USPS/FedEx and must wait for the carrier to process the claim. We will do our best to assist swiftly.
Parts Cancellations / Returns
Have questions or want to confirm your ordering correct parts before you order? Reach out to us at Info@fr33lancefab.com
No cancellations on parts such as spindles, stealth series, steering racks, pumps, CV, Driveshafts, suspension etc once ordered. This components are built per your order spec and are assigned as soon as you order.
Small parts cancellations and returns have ability to be returned within 30 days of being ordered but must be in new unopened/un used condition. Customer is subject to cover return shipping cost and a 15% restock fee to cover CC transaction fee/packaging material/re stocking.
Submit a request to Orders@fr33lancefab.com
Disclaimer
Fr33 Lance Fab aftermarket products and accessories are designed for off-road and high-performance use that may exceed the conditions intended by the original vehicle manufacturer.
All aftermarket and off-road components require regular inspection, maintenance, and replacement of worn parts. Failure to properly inspect, maintain, or install components may result in component failure and unsafe vehicle operation. Fr33 Lance Fab recommends all products be installed by a qualified professional.
By purchasing, installing, or operating these products, the customer, installer, owner, and driver acknowledge and accept all risks associated with their use, including on-road and off-road operation. The customer and driver assume full responsibility and liability for the vehicle, its operation, maintenance, inspection, and safe use after installation.
The customer, installer, owner, and driver expressly release, waive, and discharge Fr33 Lance Fab from any and all liability, claims, damages, losses, injuries, or death arising from the purchase, installation, use, misuse, maintenance, or operation of these products, including product failure or vehicle accidents of any kind.
After installation, all hardware must be re-torqued after the first 500 miles and inspected regularly thereafter. Off-road use and abuse can cause accelerated wear or damage to components.
No aftermarket parts can eliminate the inherent risks of vehicle operation. Always drive responsibly, wear seat belts, and ensure all passengers do the same.

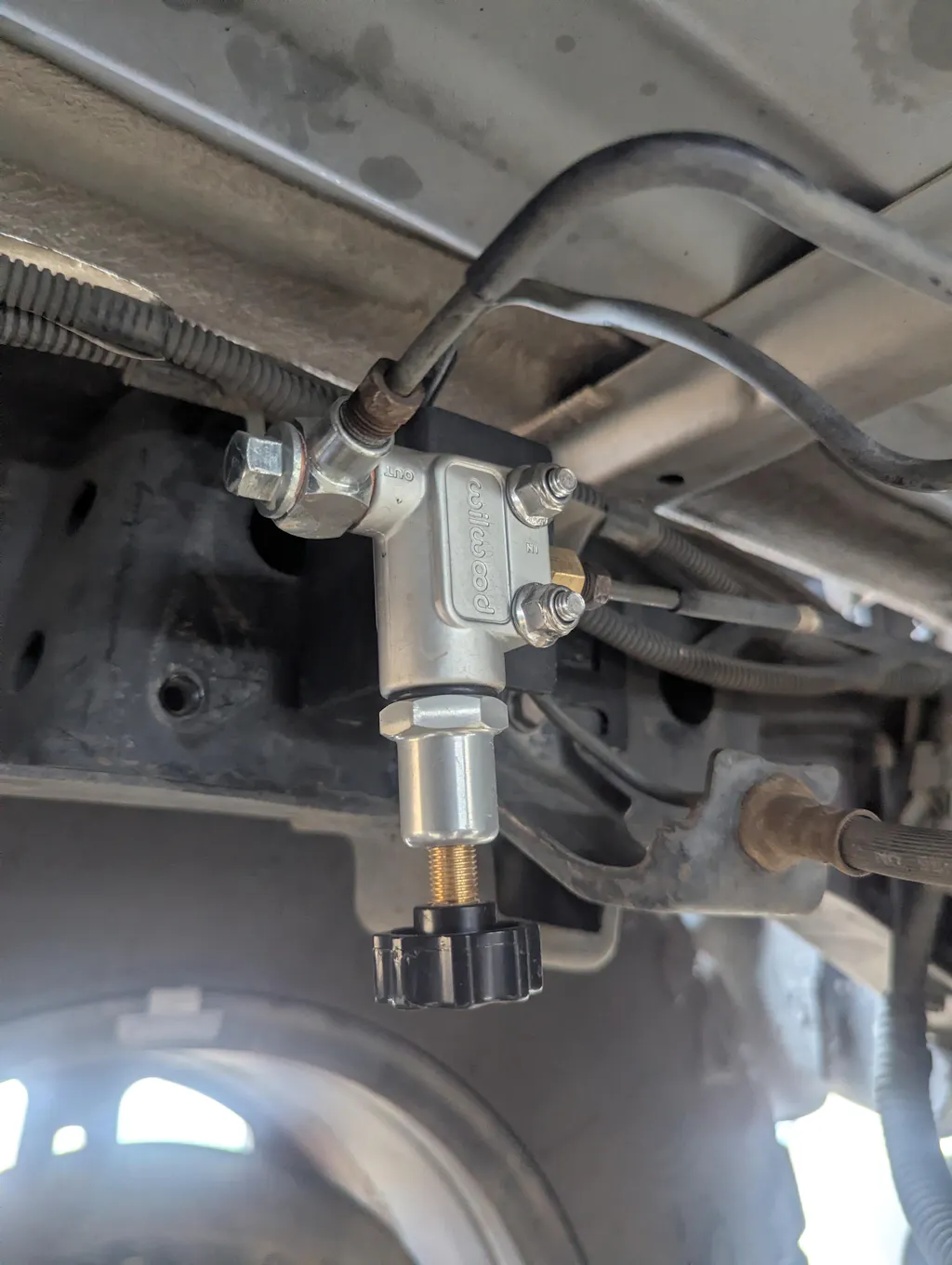

Valve worked as stated, supplied bracket makes it easy to reach into wheel well & make adjustments. Supplied fittings to plug tee up by master cylinder worked well also.
Could I have sourced all of the individual parts and made a bracket myself? Probably! But this was super easy, all inclusive and quick. Make sure your parking brake cable is properly tensioned and also that you set the drum shoes quite a bit tighter than you’d think is necessary (in My experience, these drums don’t go on easily when the shoes are adjusted properly. I was only able to use two of the three mounting bolts for the bracket. Would have been nice if the design allowed for the third, for a more rigid fitment. Otherwise the kit is mint!
Like many other folks, my lspv started leaking brake fluid. This was an easy upgrade to do away with the lspv. Mounts right up and looks pretty sharp as well.
Super fast shipping. Quality parts.
Got this installed recently and went on a few trips with it. So far so good! I immediately felt more braking power even out and it’s awesome to have the adjustment to get it where I want it. Love the quality and finish of everything as well. Get yourself this kit!
