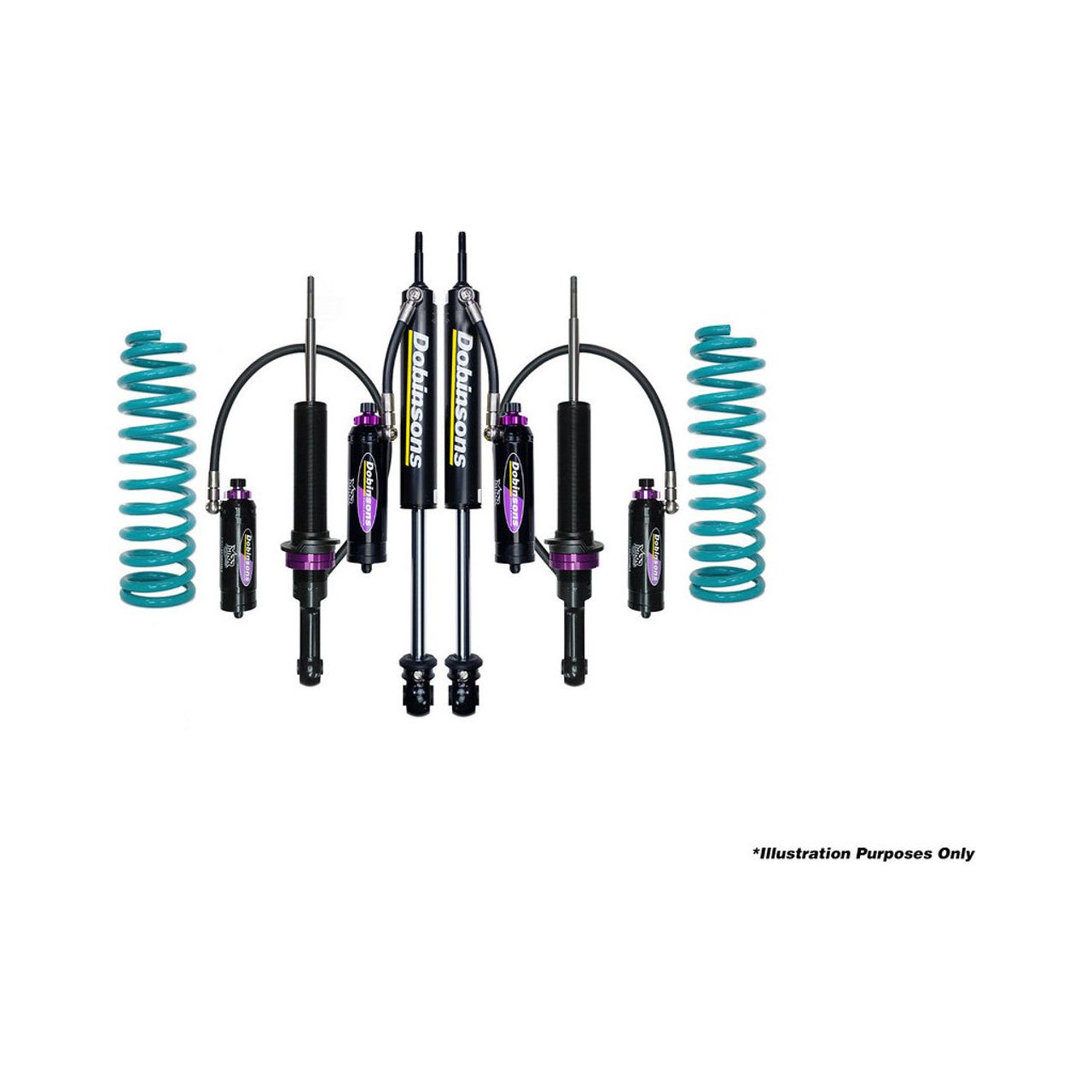

Dobinsons MRR 3-Way Adjustable Suspension Lift For Toyota Tundra 2000-2006
Dobinsons MRR 3-Way Adjustable Suspension Lift For Toyota Tundra 2000-2006
Couldn't load pickup availability
Share
SHIPS FREE IN LOWER 48 USA!
Looking for all the adjustments to adjust your suspension to perfect feel for all terrain types? You came to right place as this has Low Speed, High Speed and Rebound to really make it perfect. These come pre assembled and you will adjust to desired ride height. Shock reservoir mounts included in this package and shipping. Have a question about what suspension is right for you? Shoot us and message and we can help you choose the right kit for your use.
- Front Coil Spring Specs
- C59-300 (50mm - 2") Stock Load
- C59-302 (60mm - 2.5") Stock Load / (50mm-2") 110-175lb Load
- 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
- 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
- 20 Stage Low Speed Compression - For creepy crawling and cornering
- 15 Stage Rebound - Control your coils, prevent bucking
- 50mm CNC Machined High Flow Billet Aluminium Race Piston
- 3mm Thick Heavy Duty DOM Seamless 56mm O.D. shock Body Precision Honed to +/- 0.04mm
- Upgraded 3 Stage FKM-HNBR Sealing System
- TSUGAMITM CNC machined components for precise tolerances
- ParkerTM Braided High Pressure Hoses
- 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
- T6 6061 Height Adjustable Spring Seat
- Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-wear performance
- 60mm Full 6063 aluminum remote reservoir
- Lightweight CNC Machined Low Friction floating piston
- High Quality O.E.M. Grade Natural Rubber Bushings
- Single Piece Lower Leg
- EDP Surface Protection
- Direct Bolt-On Design
- CNC TIG Precision Welded Body End Mounts
- Fully Rebuildable Design
Comes with springs fully assembled and reservoir mounts. You can fine tune lift height from there. Lead times typically 1 week but subject to change depending on stock availability.
